Compared to traditional dispersive infrared spectrophotometers, FTIR is based on a superior operating principle that offers advantages such as Multiplex Advantage (multiple measurement), Aperture Advantage (solid angle) and Connes' Advantage (wavelength accuracy).

As a result, it provides a convenient way to achieve high sensitivity and high wavenumber accuracy. To take full advantage of these advantages, various accessories have been developed that offer cutting-edge solutions that were not possible before with conventional diffuser IR systems.

• Due to the simple optics involved in FTIR systems, attachments and accessories with more complex optics can be used to fully demonstrate their performance.

• Exceptionally high wavelength accuracy allows FTIR systems to obtain full spectrum using a single beam method that measures reference and measurement samples separately. This is more economical as it only requires an accessory.
  These accessories also include several innovations to minimize the amount of sample pre-processing or processing required. In other words, the goal of FTIR analysis is to achieve completely non-destructive analysis.

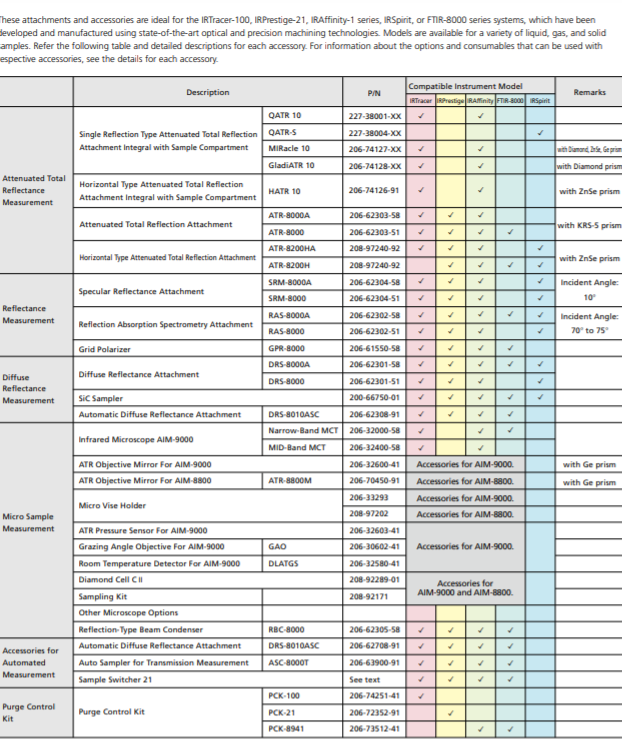

Attenuated total reflection (ATR) Accessories

Attenuated total reflection (ATR) is a method that allows the direct measurement of samples for FTIR. ATR method involves pressing the sample against a high-refractive-index prism and measuring the infrared spectrum using infrared light that is totally internally reflected in the prism. A diamond, zinc selenide (ZnSe) or germanium (Ge) prism is used in the ATR accessory.





ATR accessories can be used to measure a wide variety of samples; however, spectra can change based on the amount of pressure or have a small shift based on the crystal material. Shimadzu’s LabSolutions IR Software offers a ATR correction to correct for the interactions from the crystal material.

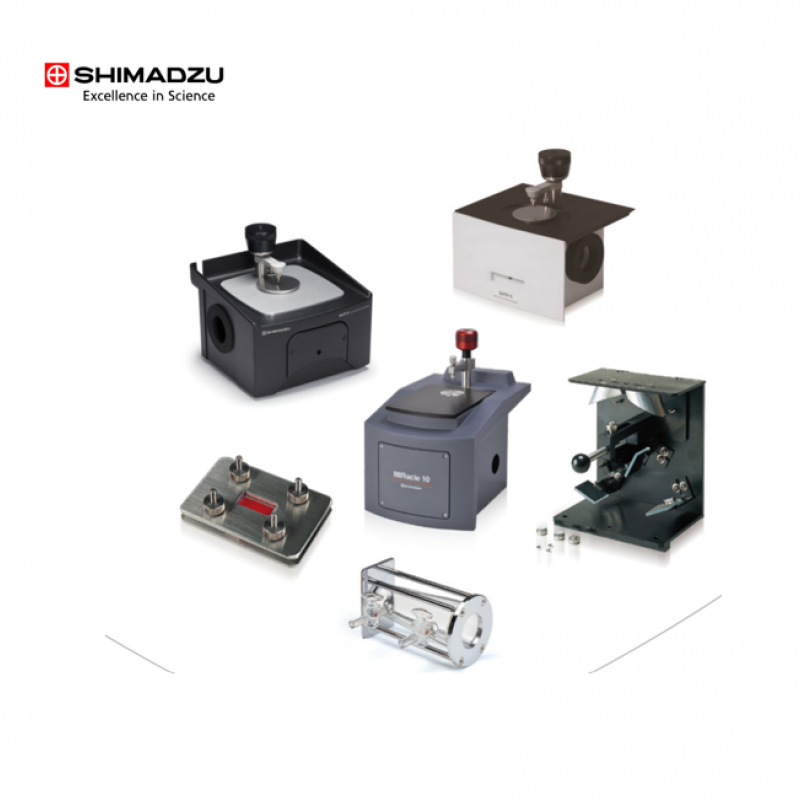

QATR-S

• Compatible Models: IRSpirit-T, IRSpirit-L
• Available crystal materials: Diamond (Extended Range), Diamond (High Through Put), Germanium, Zinc Selenide
• Types of measurable samples: Powders, solids, films, liquids



QATR-10

• Compatible Models: IRTracer-100, IRAffinity-1S
• Available crystal materials: Diamond (Extended Range), Diamond (High Through Put), Germanium, Zinc Selenide
• Types of measurable samples: Powders, solids, films, liquids


















MIRacle-10

• Compatible Models: IRTracer-100, IRAffinity-1S
• Available crystal materials: Diamond, Germanium, Zinc Selenide
• Types of measurable samples: Powders, solids, films, liquids



HATR-10

• Compatible Models: IRTracer-100, IRAffinity-1S
• Available crystal materials: Germanium, Zinc Selenide, KRS-5
• Types of measurable samples: Different sample holder for liquids and solids required



Golden Gate

• Compatible Models: IRTracer-100, IRAffinity-1S, IRSpirit-T, IRSpirit-L
• Available crystal materials: Diamond, Diamond with Zinc Selenide, Germanium with Zinc Selenide
• Types of measurable samples: Powders, solids, films, liquids



Gateway Horizontal ATR Accessory

• Compatible Models: IRTracer-100, IRAffinity-1S, IRSpirit-T, IRSpirit-L
• Available crystal materials: ZnSe
• Types of measurable samples: Different sample holder for liquids and solids required



GladiATR 10



ATR-8000A - ATR 8000

• In the ATR-8000 series, the incident angle is changeable in three steps of 30°, 45°, and 60°, so that measurement can be made to different depths.
• Combined with the program to correct for the penetrating depth of the infrared rays (which is a weak point of the ATR method because it differs depending on the wavenumber), this feature provides spectra that are highly comparable to those given by another method.
• A KRS-5 prism is provided standard. An optional Ge prism is used to measure samples with a high refractive index. ATR-8000A includes the automatic accessory recognition function.























Shimadzu Accessories Series

For more information please click.


ATR 8200HA - ATR 8200H
Horizontal Type Attenuated Total Reflection Attachment



Reflectance Measurement Attachments

SRM-8000A - SRM-8000
Specular Reflectance Attachment

The SRM-8000 series permits not only measurement of reflection spectra, but also measurement of absorption spectra through the combined use of the Kramers-Kronig analysis method.
This attachment provides absorption spectra of solids, such as high polymers, without using a prism, which is required in the ATR method. QuickStart SRM-8000A includes the automatic accessory recognition function.












RAS-8000A - RAS-8000
Reflectance Absorbtion Spectrophotometer Attachment





GPR-8000
Grid Polarizer

A grid is precisely produced on the substrate by the photographic technique. The grid polarizer enhances the sensitivity of the RAS-8000 Reflection Absorption Spectroscopy Attachment.

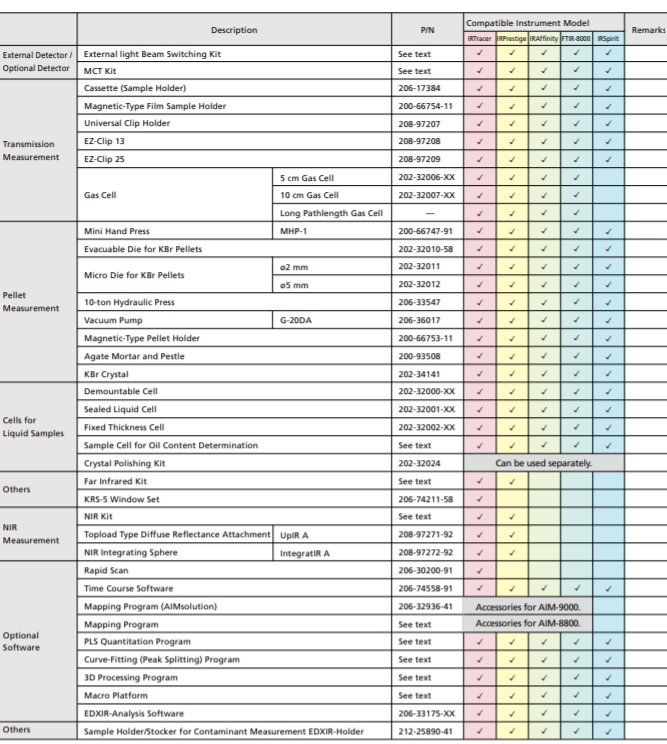

 - Diffuse Reflectance Measurement Attachments
 - Micro Sample Measurement Attachments
 - Accessories for Automated Measurement Attachments
 - Purge Control Kit Attachments
 - External Detector / Optional Detector Attachments
 - Transmission Measurement Attachments
 - Pellet Measurement Attachments
 - Cells for Liquid Samples Attachment

and much more.
