Gas Chromatography (GC / GCMS)

Shimadzu Corporation

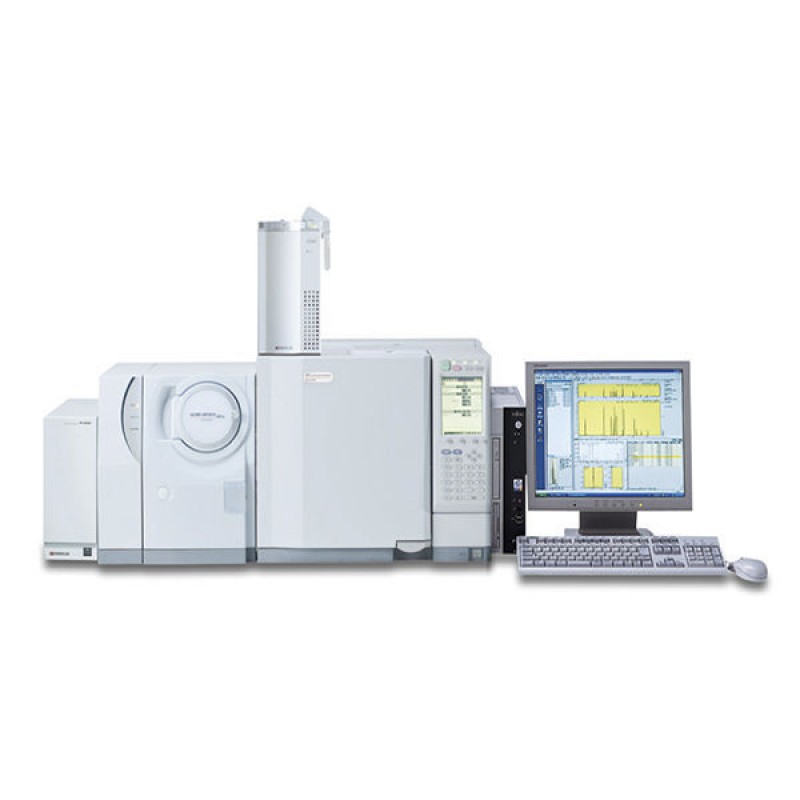

GCMS-QP2010 SE Gas Chromatograph Mass Spectrometer (GCMS)

Shimadzu GCMS-QP2010 SE Gas Chromatography Mass Spectrometer (GCMS) is a single quadrupole gas chromatography mass spectrometer that offers stable and cost-effective analysis for challenging compounds. A high-performance quadrupole mass filter provides high sensitivity in both quantitative and qualitative analysis.

The GCSMS-QP2010 SE is compatible with multiple sample input methods to provide a wider range of applications.
Developing the maximum column flow allows the use of a variety of columns. Thus, sample flow and efficiency are greatly increased. Ecology mode reduces power and carrier gas consumption and pollutes the environment less.

Example application areas
Pesticide, aroma, fragrance, PAH, phthalate, azo dye analysis in food, textile, plastic products, etc

  • The column flow is up to 4 ml/min, so columns of different sizes can be used.
  • Analytical method transfer is possible.
  • It allows Direct Sample Injection (DI) to the MS part without requiring any changes to the GC part.

Easy Maintenance Reduces Downtime

The GCMS-QP2010 SE includes a front-opening chamber in a design that is both visually pleasing and practical, allowing easy maintenance from the front of the instrument. "MSNAVIGATOR", which supports maintenance, was developed to help the user to take care of the device with safety.














Stable Mass Spectrum

Superior technology ensures high precision and stability

The ion optics have been optimized using a high performance quadrupole mass filter and Shimadzu's proprietary Optdesign simulation program to provide high quality mass spectra. Fully automatic MS tuning allows anyone to optimize parameters easily and consistently. This system helps ensure that stable mass spectra are always obtained.













High Performance Quadrupole Mass Filter

Shimadzu's patented technology for mass screening produces ideal mass filter properties (Patent: US5227629).
This system has an easily removable front bar and lens system that allows the user to quickly clean and maintain. Less downtime means more productivity.












GC-MS System Based on New Eco-Friendly Concepts

“Ecology mode” saves power consumption and reduces device running costs.
The GCMS-QP2010 SE gas chromatography mass spectrometer uses approximately 60% less carrier gas and 40% less power than previous models by activating the new Ecology mode feature when the system is between analyzes or after a set of analyzes has been completed.
Considering the typical operating conditions, Shimadzu GCMS reduces the consumption of helium gas by approximately 2 cylinders (7 m3 capacity) per year, reducing laboratory operating costs.


Reducing Standby Power Consumption

When entering ecology mode, unnecessary power consumption by GC, MS and PC is automatically eliminated. The carrier gas consumption is also automatically reduced. In addition, Ecology mode can be automatically entered after a batch run, allowing the lab to realize cost savings of running nightly.

Send Me Application Note

  • Determination of Aroma Compounds in Edible Oils by GC / MS

    In this study, determination of aroma compounds in cooking oils by Gas Chromatography Mass Spectrometry (GCMS) is included.

    Instrument: Shimadzu GC-2010 Plus Gas Chromatograph


    For more information

  • GC-MS Analysis of Phtalates: Comparison of GC Stationary Phase Performance

    Phthalates are ubiquitous in the environment and have attracted attention due to their potential adverse impact on human health. For this reason, detection and separation of phthalates has become a necessity. In this study, Restek Pro EZGC gas chromatographic modeling software was employed to determine the optimal stationary phases and conditions for phthalate GC-MS analysis.

    System: Shimadzu GCMS-QP2010 Plus Gas Chromatography Mass Spectrometry System (GCMS)

    For more information

  • Analysis of styrene leached from polystyrene cups using GCMS coupled with Headspace (HS) sampler

    Styrene is considered as possible human carcinogen by the WHO and International Agency for Research on Cancer (IARC). Migration of styrene from polystyrene cups containing beverages has been observed. The objective of this study is to develop a sensitive, selective, accurate and reliable method for styrene determination using GCMS-HS to assess the risk involved in using polystyrene cups.

    Instrument: Shimadzu GCMS-QP2010 Plus Gas Chromatograph Mass Spectrometry System (GCMS) coupled with HS-20 Headspace Sampler

    For more information
